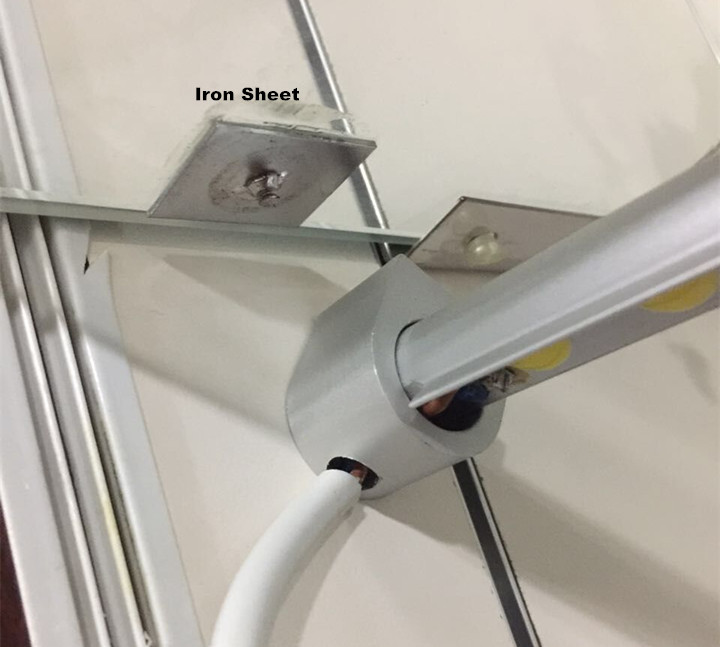

First, Mark the installtion position of iron sheet at your display showcase at first. Then adhere two  Iron sheets on the glass board by glue (it is better to use shadowless glue).

Note: Please make sure the iron sheet is adhered at the right position. It is difficult to change the position when it is adhered by glue (it is better to use shadowless glue).

Note2: For wooden board, you can drill holes on the iron sheet, and fix the iron sheet using screw bolt.

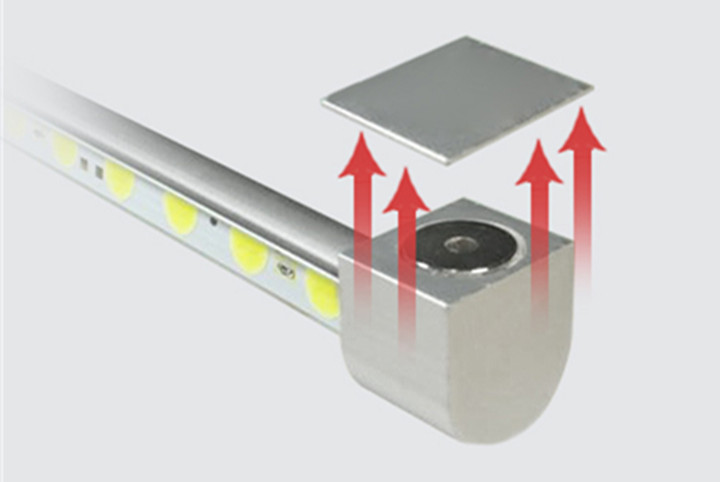

Second, after the iron sheet is strongly adhered on the glass. Then connect the LED bar on the Iron sheet. It is connect by magnet. It is convenient!

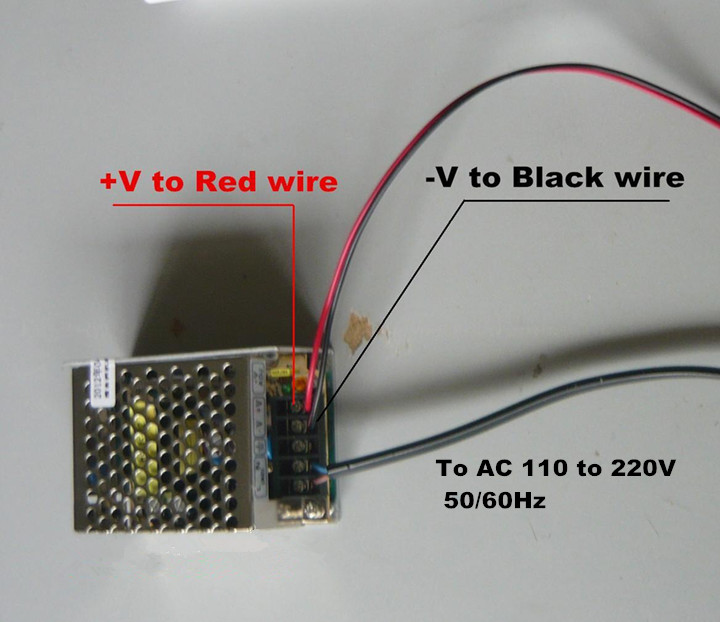

Third, let wires go through hole drilled on your display box, and connect wires to the driver provided. The black wire of  LED Bar connecting to the “-V”, and red wire of  LED Bar connecting to the “+V”.

Forth, Connect outer power supply source to the driver. The power supply wires and plugs should prepared by yourself.

Note: Please cut off power supply source before connection!
